Mifare 1K S50 Card：
Product: Mifare 1k (s50) cardï¼› Chip:Philips Mifare 1 IC S50ï¼› Volume:8Kbit ï¼›Frequency13.56 MHz ï¼›Read Range:2.5~10cmï¼›Transfer Rates:106KBoudï¼›Read Range:2.5~10cmï¼›Read/Write Time:1~2msï¼›Operating Temperature：-20°C~55°Cï¼›Scratch: over 100,000 timesï¼›Data Storage: over 10 years ï¼›Card Size:ISO Standard 85.5x54x0.84mmï¼›Material:PVC,PET,ABS,0.13mm copper wireï¼›Packaging Technology: The ultrasonic wave plants the line/to bump automatically automatically weldsï¼›Carried Standard:ISO14443Aï¼›
Application: An enterprise/campus cartoon, public transportation prepaid card, highway charge, parking lot, plot management and so on
Details:
The non-contact IC thin card, is composed of the IC chip and the induction antenna, suppresses the international standard size after the high temperature lamination craft the card.
The non-contact IC thin card, is composed of the IC chip and the induction antenna, suppresses the international standard size after the high temperature lamination craft the card.
Mifare the S50 radio frequency thin card uses Phillips (NXP) original installation Mifare IC the S50 chip, conforms to IEC/ISO the 14443A air connection agreement.
It has the advanced data encryption and the bidirectional password confirmation system, with 16 completely independent sectors, has the extremely high stability and the widespread application scope, is an enterprise cartoon, the water meter pre-payment, the public transportation prepaid card, the highway charge, the parking lot, the plot management, is in luck the card, the park, first choice and so on road RFID products

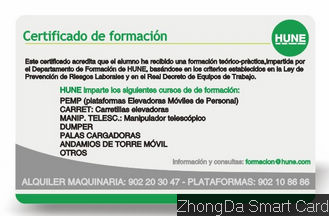

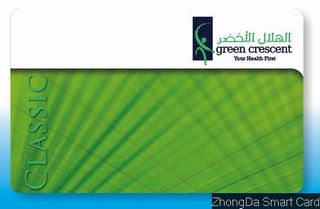

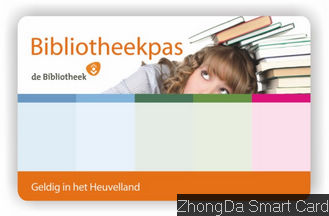

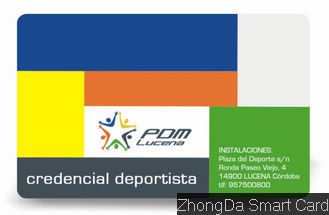

The card may carry on high grade offset printing/silk India in advance in the factory, or the small printer carries on the personalized printing.
The card may carry on high grade offset printing/silk India in advance in the factory, or the small printer carries on the personalized printing.
The showing picture is for reference only, all related to intellectual property rights of trademark belong to trade mark companies!
